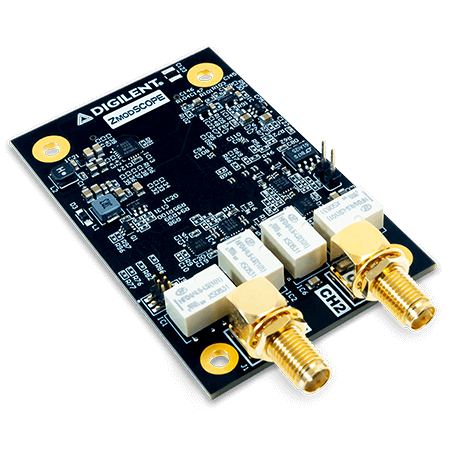

Digilent Zmod ADC 1410
The Zmod ADC is one of Digilent’s first SYZYGY-compliant expansion modules. The SYZYGY standard offers a much higher speed/bandwidth digital interface than Pmods, but at a much smaller and lower-cost form-factor than FMC, enabling the user to configure an FPGA development board with the right I/O for their application.
The Zmod ADC is equipped with Analog Devices AD9648, the dual channel, high speed, low power, 14-bit, 105MS/s Analog to Digital Converter (ADC). Driven by the SYZYGY carrier, the Zmod ADC can acquire two simultaneous signals
(1MΩ, ±25V, single-ended, 14-bit, 100MS/s, 70MHz+ bandwidth). Analog inputs can be connected to a circuit using SMA cables.
Part no.: 410-396
Key features
- Input Channels 2
- Input range - Low Range ±1V
- Input range - High Range ±25V
- Accuracy [% of Input range] ±0.2%
- Absolute resolution - Low Range 0.13mV
- Analog Bandwidth @ 3dB 20 MHz
- Analog Bandwidth @ 0.5dB 8 MHz
Applications
- AD-DA Converter Measurement
