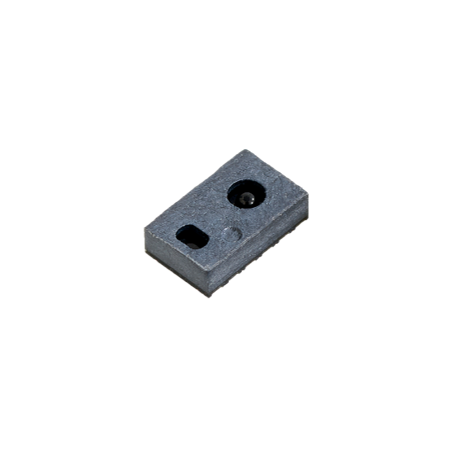

ams TMF8801 TOF Sensor
The TMF8801 is a dToF (direct time of flight) optical distance sensor module achieving up to 2500mm target detection distance.
Part no.: TMF8801-1BM
Key features
- Direct ToF technology with high sensitivity SPAD detection
- Fast Time-to-Digital Converter (TDC) architecture
- Sub-nanosecond light pulse
- 20 – 2500mm distance sensing @ 30Hz
- On-chip histogram processing
- 940nm VCSEL Class 1 Eye Safety
- High performance on-chip sunlight rejection filter and algorithm
- Industry’s smallest modular OLGA 2.2 x 3.6 x 1.0 mm package
Applications
- UV-C Treatment
- Sensing
- Horticulture Treatment
