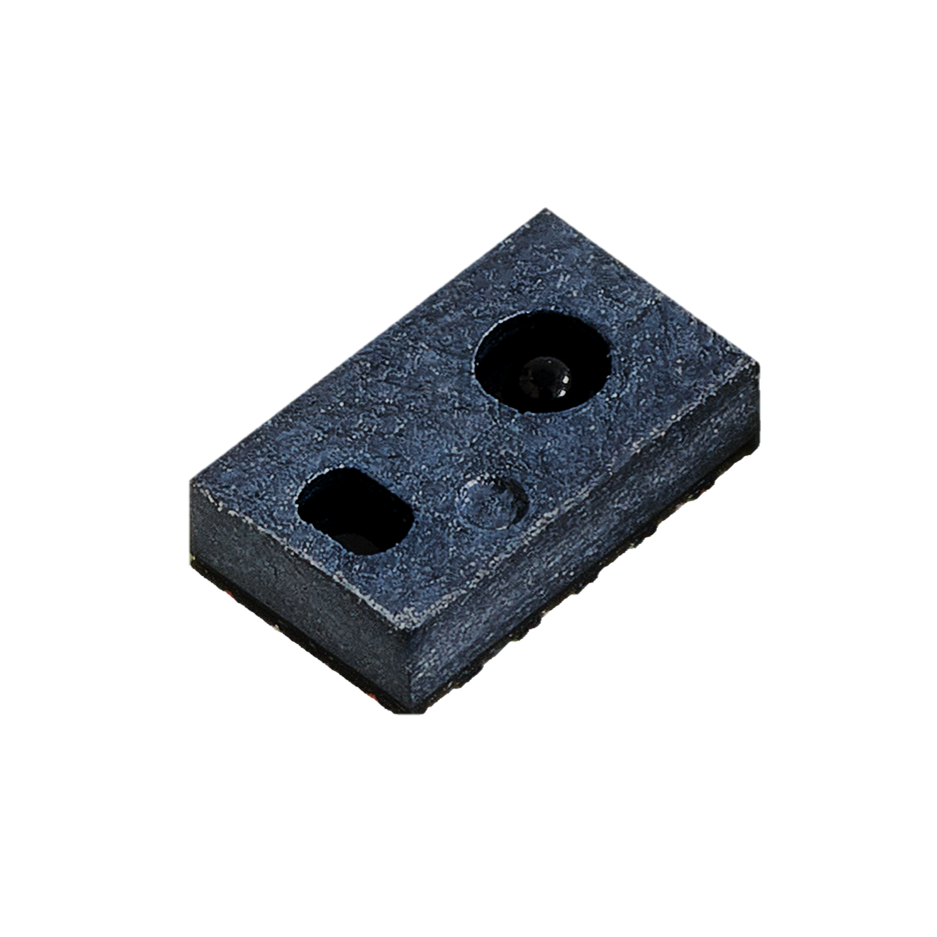

ams TMF8701 TOF Sensor
The TMF8701 is a time-of-flight (TOF) sensor in a single modular package with associated VCSEL. The TOF device is based on SPAD, TDC and histogram technology.
Part no.: TMF8701-1XM
Key features
- Direct ToF technology with high sensitivity SPAD detection
- Fast Time-to-Digital Converter (TDC) architecture
- Sub-nanosecond light pulse
- 0 – 10cm proximity detection and 10 – 60cm distance sensing @ 60Hz
- On-chip histogram processing
- 940nm VCSEL Class 1 Eye Safety with 21° FOI
- Sunlight on-chip rejection filter and algorithm
- Industry’s smallest modular OLGA 2.2mm x 3.6mm x 1.0 mm package
Applications
- UV-C Treatment
- Sensing
- Horticulture Treatment
