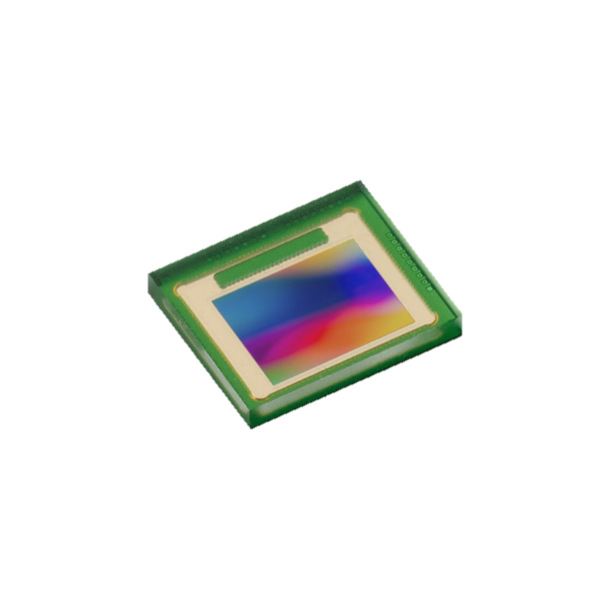

ams Mira030 Image Sensor
Mira030 is a monochrome global shutter CMOS image sensor with a resolution of 640H × 480V. The sensor supports complex on-chip operations such as external trigger, windowing and horizontal or
vertical mirroring. Its maximum frame rate is 180fps at a resolution of 640H × 480V. Registers of this chip are accessible via the standard I2C interface. External triggering is possible via the TRIG pin.
Part no.: MIRA030-1RM2D0
Key features
- High speed applications 180 fps at 10b full resolution
- Motion blur robustness & low PLS Global shutter pixel
- Standard data interfaces MIPI and LVDS
- Standard control interface I2C interface
- Low power consumption Max 120 mW at max frame rate
Applications
- UV-C Treatment
- Sensing
- Horticulture Treatment
