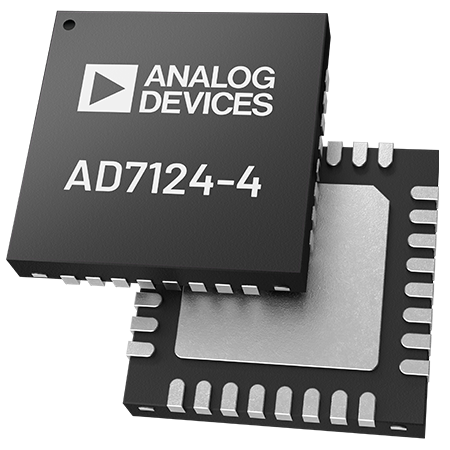

ADI AD7124-4 4-Channel, Low Noise, Low Power, 24-Bit, Sigma-Delta ADC
The AD7124-4 is a low power, low noise, completely integrated analog front end for high precision measurement applications. The device contains a low noise, 24-bit Σ-Δ analog-to-digital converter (ADC), and can be configured to have 4 differential inputs or 7 single-ended or pseudo differential inputs. The onchip low gain stage ensures that signals of small amplitude can be interfaced directly to the ADC.
Part no.: AD7124-4BBCPZ
Key features
- Three power modes
- Up to 22 noise free bits in all power modes (gain = 1)
- Rail-to-rail analog inputs for gains > 1
- Simultaneous 50 Hz/60 Hz rejection at 25 SPS (single cycle settling)
- Diagnostic functions (which aid safe integrity level (SIL) certification
- Crosspoint multiplexed analog inputs
- Programmable gain (1 to 128)
- Band gap reference with 10 ppm/°C drift maximum (70 μA)
- Power supply: 2.7 V to 3.6 V and ±1.8 V
- Temperature range: −40°C to +125°C
Applications
- Instrumentation Smart transmitters
- Smart transmitters
- Temperature measurement
- Pressure measurement
- Industrial process control
