Based on the power-efficient Arm® Cortex®-M4 core, operating at up to 180 MHz, the LPC54018 MCU-based IoT Module allows you to connect to the AWS cloud while offering a seamless Wi-Fi connection – all offered in an effort to help accelerate your next IoT design.

The WMN416Bx series modules is ultra-compact, WI-FI 4 modules. It supports IEEE 802.11a/b/g/n Wi-Fi standards delivering up to 150 Mbps data throughput. With dual-band, 2.4 / 5 GHz 20MHz and 40 MHz channel Bandwidth, the modules can work as a station with different types of AP, as a simple access-point, in P2P communication, or as a combination of these Features.

The WMN416BCx series modules is ultra-compact, Wi-Fi + Bluetooth5.2 combo module. It supports IEEE 802.11a/b/g/n Wi-Fi standards delivering up to 150 Mbps data throughput. With dual-band, 2.4 / 5 GHz 20MHz and 40 MHz channel Bandwidth, the modules can work as a station with different types of AP, as a simple access-point, in P2P communication, or as a combination of these Features.

The WMN416Ax series modules is ultra-compact WI-FI&BT combo modules. It supports IEEE 802.11a/b/g/n Wi-Fi standards delivering up to 150 Mbps data throughput. With dual-band 2.4 / 5 GHz, 20MHz and 40 MHz channel Bandwidth, the modules can work as a station with different types of AP, as a simple access-point, in P2P communication, or as a combination of these Features.

The S32K3 MCUs of 32/bit AEC-Q100 qualified MCUs combine a scalable family of Arm® Cortex®-M7-based microcontrollers in single, dual, and lockstep core configurations, supporting up to ASIL D functional safety automotive and industrial applications.

S32K3 MCUs feature hardware security engine (HSE) with NXP firmware, support for firmware over-the-air (FOTA) updates and free ISO 26262 compliant Real-Time Drivers (RTD) for AUTOSAR® and non-AUTOSAR.

S32K3 MCUs are available in the new NXP MaxQFP package, which reduces the package footprint by up to 55% when compared to the standard QFP package.

S32G2 vehicle network processors combine ASIL D safety, hardware security, high-performance real-time and application processing and network acceleration. S32G2 supports the needs of new vehicle architectures: service-oriented gateways, domain controllers, zonal processors, safety processors and more.

The S32G2 vehicle network processors are supported by a broad range of software enablement that is comprised of Reference Software, Standard Software and Premium Software, in addition to support from the S32 Design Studio IDE.

The LS2 family of processors delivers unprecedented performance and integration for tomorrow’s smarter, more capable networks. The eight-core LS2084A and the four-core LS2044A multicore processors offer Arm® Cortex®- A72 cores with the advanced, high-performance datapath and network peripheral interfaces required for networking, telecom/datacom, wireless infrastructure, military, aerospace and automotive applications. ensure interoperability with standard operating systems and hypervisors.

If you need high NFC performance or the lowest power consumption, use this remarkably efficient yet highly flexible frontend family to push your design further. It offers an extended temperature range, pin-to-pin compatibility within the CLRC663 plus family (see table below), and time-saving software tools. Supporting, among others, MIFARE®, ISO/IEC 14443, ISO/IEC 15693, and ISO/IEC 18000-3m3, the CLRC663 plus family is the natural companion to match with NXP NFC tag

The EdgeLock SE050 secure element (SE) product family offers enhanced Common Criteria EAL 6+ and FIPS 140-2 certified security, for strong protection against the latest attack scenarios, and an extended feature set for a broad range of IoT use cases. This ready-to-use secure element for IoT devices provides a root of trust at the IC level and delivers real end-to-end security – from edge to cloud – without the need to implement security code nor handle critical keys and credentials.

The S32V234 is a second-generation vision processor family and member of the 64-bit Arm® Cortex®-A53 S32V processors. The S32V234 processor offers an image signal processor (ISP), a powerful 3D graphic processor unit (GPU), dual APEX-2 vision accelerators, automotive-grade reliability, functional safety & security capabilities.

S32V234 processors support computation-intensive ADAS, New Car Assessment Program (NCAP) front camera, object detection & recognition, surround view and automotive & industrial image processing; also, machine learning (ML) and sensor fusion applications.

The QN9090 and QN9030 are the latest microcontrollers in the QN series of Bluetooth low energy devices that achieve ultra-low-power consumption and integrate an Arm®Cortex®-M4 CPU with a comprehensive mix of analog and digital peripherals. With support for up to 640KB onboard flash and 152 KB SRAM, the memory integration provides room and flexibility for complex applications and safe Over-the-Air (OTA) updates. QN series devices have a rich set of MCU peripherals including multiple serial communication interfaces. Within the QN series the QN9090T and QN9030T integrate NFC NTAG to support use cases such as out-of-band pairing. By tapping a device based on the QN9090T with an NFC reader device, such as a smart phone or tablet, a Bluetooth LE connection can be established quickly simplifying the pairing process.

The NxH3670 constitutes a highly integrated, single-chip ultra-low-power 2.4 GHz wireless transceiver with embedded MCU (Integrated Arm® Cortex®-M0 processor), targeted at wireless audio streaming for gaming headphones, delivering low latency audio and ultra-low power consumption.

Based on the Arm® Cortex®-M0+ core, LPC84x is a low-cost, 32-bit MCU family operating at frequencies of up to 30 MHz. The LPC84x MCU family supports up to 64 KB of flash memory and 16 KB of SRAM.

This family features exceptional power efficiency in the low-current mode using the FRO as the clock source. The peripheral complement of the LPC84x MCU family includes a CRC engine, four I2C-bus interfaces, up to five UARTs, up to two SPI interfaces, capacitive touch interface (enablement coming in Q3), one multi-rate timer, self-wake-up timer, SCTimer/PWM, one general purpose 32-bit counter/timer, a DMA, one 12-bit ADC, two 10-bit DACs, one analog comparator, function-configurable I/O ports through a switch matrix, an input pattern match engine, and up to 54 general-purpose I/O pins.

The LS1046A and LS1026A processors integrate quad and dual 64-bit Arm® Cortex®-A72 cores respectively with packet processing acceleration and high-speed peripherals. They are pin-compatible with LS1023A, LS1043A and LS1088A SoC to provide performance scaling for 64-bit Arm, ranging from dual-A53 through octal-A53 to quad-A72 core processors, while maintaining hardware and software compatibility.

Layerscape processors are part of NXP’s EdgeVerse™ edge computing platform.

Both devices are proven certifiable to the Arm SystemReady ES standard to ensure interoperability with standard operating systems and hypervisors.

The S32K1 MCUs of 32-bit AEC-Q100 qualified MCUs combine a scalable family of Arm® Cortex®-M based microcontrollers, built on long-lasting features with a comprehensive suite of production-grade tools and supporting up to ASIL B functional safety automotive and industrial applications.

S32K1 MCUs feature ultra-low-power operating modes, a cryptographic security engine with NXP firmware and an automotive-grade Software Development Kit (SDK) with low-level drivers and the FreeRTOS™ OS. The S32K1 MCUs are available in QFN, LQFP and MAPBGA packages.

i.MX RT1170 crossover MCUs are part of the EdgeVerse™ edge computing platform and are setting speed records at 1 GHz. This ground-breaking family combines superior computing power and multiple media capabilities with ease-of-use and real-time functionality. The dual core i.MX RT1170 MCU runs on the Arm® Cortex®-M7 core at 1 GHz and Arm Cortex-M4 at 400 MHz, while providing advanced security. The i.MX RT1170 MCU offers support over a wide temperature range and is designed for consumer, industrial and automotive markets.

The JN5189 portfolio is designed to power the next generation of very low current wireless devices, supporting Zigbee 3.0, Thread, and IEEE 802.15.4. It includes several low-power modes and ultra-low TX and RX power consumption, which enables devices powered by JN5189/88 to have a longer battery life. With -100 dBm RX sensitivity and up to +11 dBm TX output power, JN5189/88 offers reliable and robust communications performance.JN5189/88 is powered by an Arm® Cortex®-M4 MCU and can run up to 640 KB onboard flash and 152 KB SRAM, with enough room and flexibility for complex applications and OTA upgrade capability without external memory. It has a rich set of MCU peripherals and multiple serial communication interfaces for embedded connected applications. JN5189T/88T has an integrated NFC NTAG to implement contactless NFC commissioning, simplifying the network build-out.

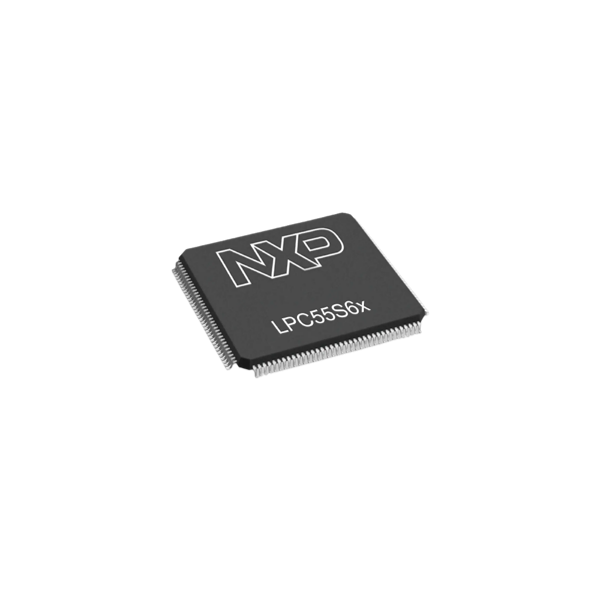

The LPC55S6x MCU family is part of the EdgeVerse™ edge computing platform and builds on the world’s first general-purpose Cortex-M33 based microcontroller introduced with the LPC5500 series. This high-efficiency family, inclusive of LPC55S69JBD100, LPC55S66JBD100, LPC55S69JEV98, LPCS66JEV98, LPC55S69JBD64, LPCS66JBD64 MCUs, leverages the new Armv8-M architecture to introduce new levels of performance and advanced security capabilities including TrustZone-M and co-processor extensions. The LPC55S6x family enables these co-processors extensions and leverages them to bring significant signal processing efficiency gains from a proprietary DSP accelerator offering a 10x clock cycle reduction. An optional second Cortex-M33 core offers flexibility to balance high performance and power efficiency.

Designed with the specific needs of IoT devices in mind, Trimension SR150 adds Angle-of-Arrival (AoA) technology for an added level of precision. The integrated FiRa™ MAC by NXP supports interoperability with the growing set of UWB devices to market. As the latest development, it also offers interoperability with Apple U1 chipset with firmware v.3.14.0.

UM040 UWB module is designed for ranging application in IoT environment with antenna onboard. The distance estimation is based on ToF measurement and is immune to relay station attack. System-level solution is provided based on comprehensive software.

Build upon NXP’s SR040 ultra-wideband (UWB) transceiver IC, the Excelpoint UM040 UWB DEVELOPMENT KIT is designed with the UM040 UWB module with antenna onboard for ranging application in IoT environment. The distance estimation is based on ToF measurement and is immune to relay station attack. System-level solution is provided based on comprehensive software. The evaluation kit is available with QN9090 module as the host.

Optimized for low-power operation and reducing the need for external components, Trimension SR040 is designed for use in coin cell battery-operated IoT devices, such as UWB trackers and tags. The integrated FiRa™ MAC by NXP supports interoperability and fast time-to-market. Trimension SR040 can be integrated with other connectivity controllers in one device. Being used as a Time Difference of Arrival (TDoA) tag, they can send blink packets only.

Build upon NXP’s SR150 ultra-wideband (UWB) transceiver IC, the Excelpoint UM150 UWB DEVELOPMENT KIT is designed with the UM150 UWB module with antenna onboard for ranging application in IoT environment. The distance estimation is based on ToF measurement and is immune to relay station attack. System-level solution is provided based on comprehensive software. The evaluation kit is available with QN9090 module as the host and support dynamic secure ranging together with SE051E(secure element)

UM150 UWB module is designed for ranging application in IoT environment. The distance estimation is based on ToF measurement and is immune to relay station attack. System-level solution is provided based on comprehensive software. The evaluation kit is available with QN9090 module as the host and support dynamic secure ranging together with SE051E(secure element).

NTAG 213, NTAG 215, and NTAG 216 have been developed by NXP® Semiconductors as standard NFC tag ICs to be used in mass-market applications such as retail, gaming, and consumer electronics, in combination with NFC devices or NFC-compliant Proximity Coupling Devices. NTAG 213, NTAG 215, and NTAG 216 (from now on, generally called NTAG 21x) are designed to fully comply to NFC Forum Type 2 Tag and ISO/IEC14443 Type A specifications.

Designed for quick integration into a very wide range of systems, the PN7160 supports all NFC Forum modes, includes drivers for Android and Linux, and supports RTOS and no OS applications. Embedded NFC firmware reduces the need for host interactions and minimizes code size, making design-in that much easier. Available with an I2C or SPI interface, the PN7160 is compatible with popular MCUs, including LPC, Kinetis and i.MX. The PN7161 version adds support for Apple ECP.

The i.MX 8M Plus family focuses on neural processing unit (NPU) and vision system, advance multimedia, and industrial automation with high reliability. The i.MX 8M Plus is a powerful quad Arm® Cortex®-A53 processor with speed up to 1.6 GHz integrated with a NPU of 2.3 TOPS that greatly accelerate machine learning inference. The vision engine is composed of two camera inputs and a HDR-capable Image Signal Processor (ISP) capable of 375 MPixels/s.

The advanced multimedia capabilities include 1080p60 video encode and decode H.265 and H.264. A 3D and 2D graphic acceleration supporting 1 GPixel/s, OpenVG 1.1, Open GL ES3.1, Vulkan, and Open CL 1.2 FP. Multiple audio and microphone interfaces for Immersive Audio and Voice systems.

The i.MX 6QuadPlus family delivers dramatic graphics and memory performance enhancements and are pin-compatible with a broad range of i.MX 6 processors. This device encompasses a quad-core Arm® Cortex®-A9 platform running up to 1.2 GHz* with 1 MB of L2 cache, advanced graphics, prefetch and resolve engine, and optimized 64-bit DDR3 or 2-ch., 32-bit LPDDR2 support. Integrated FlexCAN, MLB busses, PCI Express® and SATA-2 provide excellent connectivity, while integration of LVDS, MIPI display port, MIPI camera port and HDMI v1.4 makes it an ideal multicore platform for a leading-edge consumer, automotive and industrial multimedia applications which require higher graphics performance.
